Our TAKUMI Machining Centers are equipped with the latest Heidenhain TNC control. 640.
Space-saving multitalents
TAKUMI VC 1052

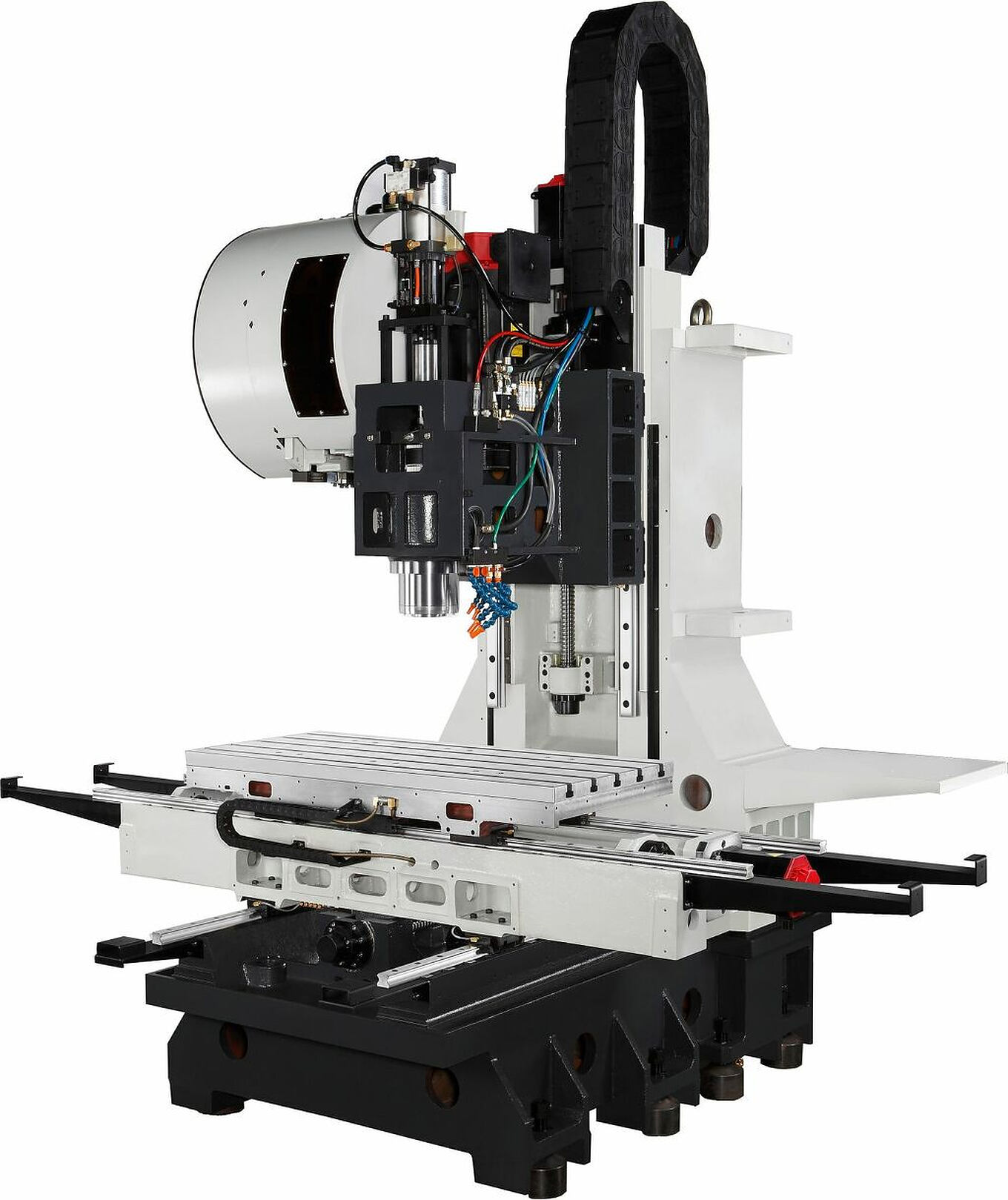

The VC 1052 machine from our portfolio of vertical 3-axis CNC machining centers is a cost-optimized investment that will help you get the maximum performance from your production. Thanks to its stable yet compact design, the milling machine has a small footprint, making it ideal for store floor operation and shop floor programming.
Travels and Table
X-Axis (mm): 1.060
Y-Axis (mm): 520
Z-Axis (mm): 610
Table working surface W x D (mm): 1.160 x 520
Spindle Speed (rpm): 15.000
Produkt anfragen
Y-Axis (mm): 520
Z-Axis (mm): 610
Table working surface W x D (mm): 1.160 x 520
Spindle Speed (rpm): 15.000
- In-line spindle up to 15,000 rpm
- Spindle cooler
- User-friendly, ergonomic access for loading
Details
Specifications - VC 1052
| Travels | |
|---|---|
| X-Axis (mm) | 1.060 |
| Y-Axis (mm) | 520 |
| Z-Axis (mm) | 610 |
| Table | |
|---|---|
| Table working surface W x D (mm) | 1.160 x 520 |
| Load max. (uniform distribution) (kg) | 650 |
| Distance from spindle nose to table (mm) | 115 - 725 |
| T-Slots (DIN 650) | 5 x 18mm x 100mm |
| Spindle | |
|---|---|
| Spindle Taper | SK40 - BigPlus / BBT40 |
| Type | In-Line |
| Power S1/S6 (kW) | 10 / 14 |
| Torque S1/S6 (Nm) | 63,7 / 89,4 |
| Spindle Speed (rpm) | 15.000 |
| Feed Rate | |
|---|---|
| Rapid Traverse X/Y/Z-Axis (m/min) | 36 / 36 / 24 |
| Cutting Feed Rate X/Y/Z-Axis (mm/min) | 12 |
| ATC & Magazine | |
|---|---|
| ATC Type | Doppelgreifer |
| Magazine Capacity | 30 |
| Maximum Tool Diameter (mm) full / next pocket empty | 75 |
| With Empty Pockets (mm) | 150 |
| Maximum Tool Length (mm) | 300 |
| Maximum Tool Weight (kg) | 7 |
| Space & System Requirements | |
|---|---|
| Maximum Floor Space (mm) W x L x H | 3.870 x 3.750 x 3.100 |
| Machine Net Weight (kg) | 5.500 |
| Electrical Power Consumption (kVA / A) | 30 |
| Air Requirements (bar) | 6 |
Spindle
Choose the spindle that suits you
| Spindle options | VC 1052 | |
|---|---|---|
| Drehzahl max. (1/min) | 15.000 | 15.000 |
| Leistung S1/S6 (kW) | 10 / 14 | 10 / 14 |
| Drehmoment S1/S6 (Nm) | 63,7 / 89,4 | 63,7 / 89,4 |
| Schnittstelle | SK40BigPlus | BBT40 / HSK63-A |
| Standard / Optional | Standard | Optional |
Features
Always perfectly equipped
Great features of our standard equipment
- Heidenhain Control TNC 640

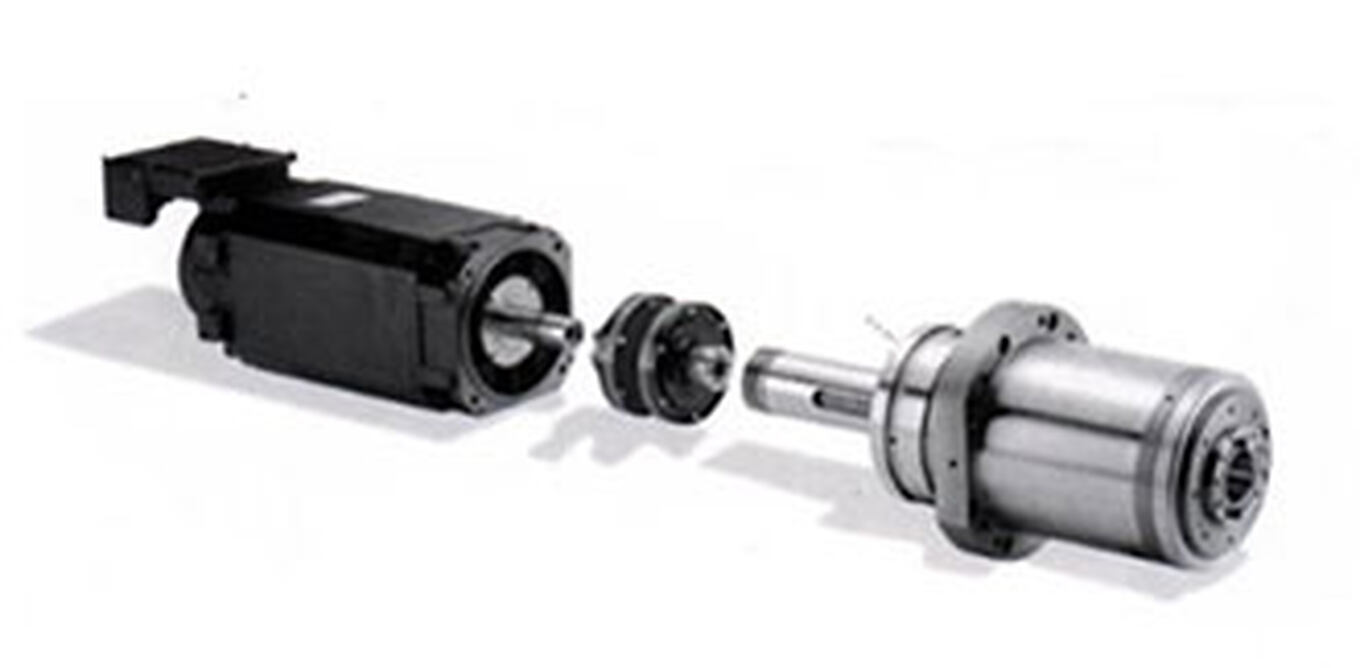

- Direct drive spindle 15.000 1/min. SK40BigPlus
- Coolant wash-down system
- Spindle chiller
- Full enclosure
- Programmable airblow machining
- Oil Skimmer
- Wash-down gun and air gun
- Chip conveyor and cart
- Manual pulse generator (MPG)
- Ethernet interface
With further optional equipment you can adapt the TAKUMI VC 1052 to your needs
- Heidenhain Control TNC7 basic
- Coolant through spindle (CTS 30 bar)
- Rotary table (4th / 5th axis)
- Part probe measurement system
- Tool probe measurement system
- Programmable airblow through spindle machining
- Oil mist device
- Oil mist collector
- Scraper type conveyor instead of chain type conveyor
- Production package Knoll
- Bypass Filter
- Rotoclear
Highlights

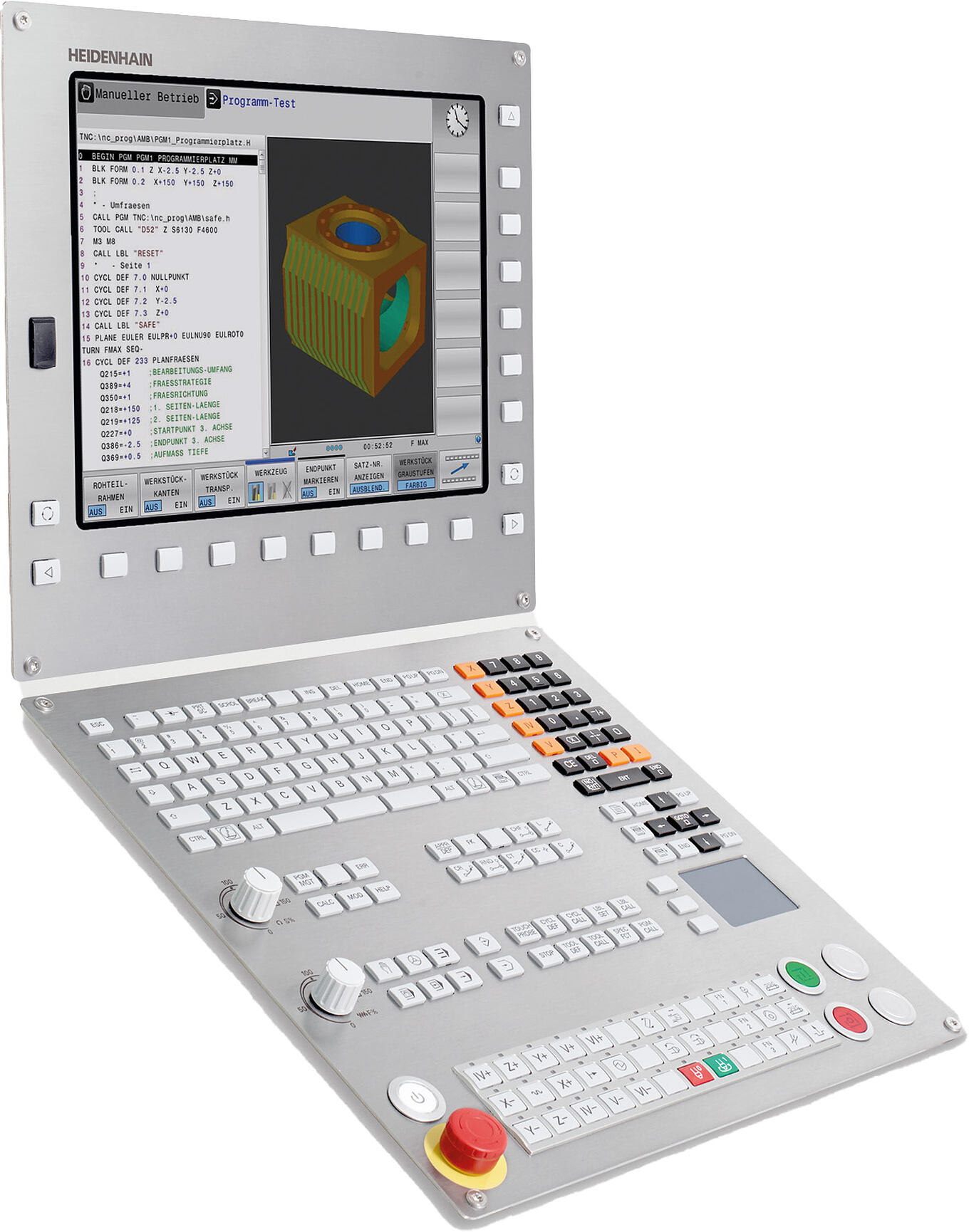

Heidenhain Control TNC 640

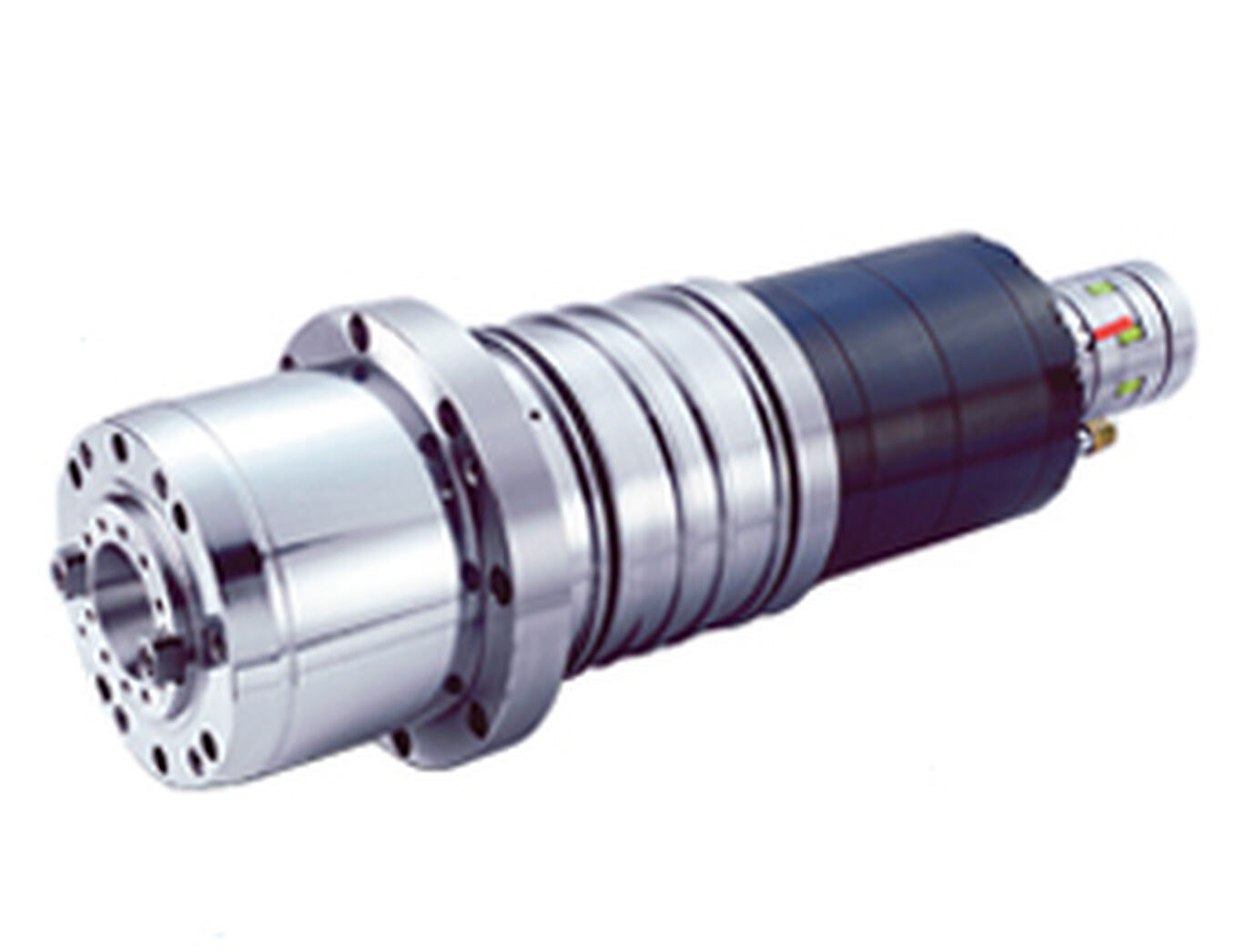

Precise High performance spindle
- With the V-series, TAKUMI offers the optimal spindle for your demands
- Spindle speeds of 15.000 (rpm)
- Output up to 10kW – 40kW
- Interface: SK40 BigPlus / BBT 40 / BBT 50

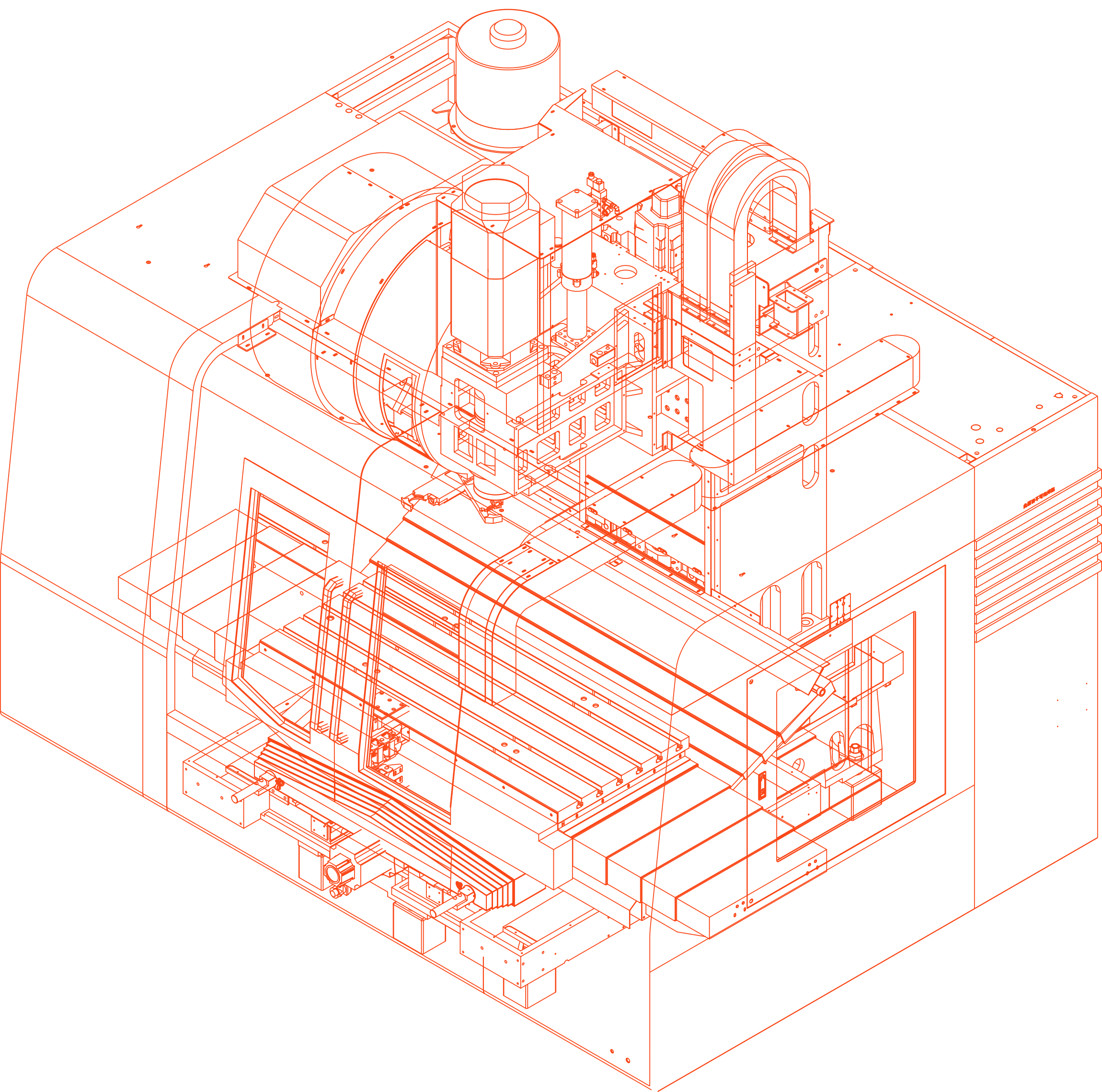

Extremely stiff and high-presision mechanical structure
- The load-bearing mechanical structures such as bed, pillar, bed sledge are made of heat-treated and stress-released Meehanite cast iron. The thereby gained absorption capacity enables low-vibration machining processes. This ensures high surface quality on the workpiece and increases the tool life.
